Control and Signaling Devices Ø 22.5 mm
ME-Series

Push Buttons , Selector Switches , Luminous Selector Switches , Luminous Switches & Pilot Lights with Bulb & with LED are available in chrome plated metal bezels

Contact Elements are double break type and have self wiping action . The elements are interchangeable and can be stacked without additional hardware . 1 to 6 elements (NO or NC) with push buttons . Selector switches and 1 or 2 elements (NO or NC) with illuminated switches .

Pilot Lights and illuminated switch are suitable for direct supply through series resistor using bayonet cap filament Bulb (Type BA9S) for direct supply without resistor 6V -130 V for supply with series Resistor 12 V - 130 V . The Pilot lights are also available with LED in different versions





Flush Button
Spring Return
Cat No. ME-AF
Available Colors
DIMENSION With Contact Elements

Projecting Button
Spring Return
Cat No. ME-AP
Available Colors
DIMENSION With Contact Elements

Flush Booted Button
Spring Return
Cat No. ME-AB
Available Colors
DIMENSION With Contact Elements

Mushroom Button
Head dia 40mm
Spring Return
Cat No. ME-AM
Available Colors
DIMENSION With Contact Elements

Mushroom Stay Put Button
Head dia 40mm
Spring Return
Cat No. ME-AMS
Available Colors
DIMENSION With Contact Elements

Mushroom Head Key
Lockable Actuator
Cat No. Key Removable in
ME-AKL 1 Pressed Position
ME-AKL 2 Un-pressed Position
ME-AKL 3 Both Position
ME-AK1PL Pressed to lock and key to reset
Available Color
DIMENSION With Contact Elements

Selector Actuator
Cat No.
ME-S2P Two Position
ME-S3P Three Position
ME-S2PS Two Position
Spring Return
ME-S3PS Three Position
Spring Return
Available Color
DIMENSION With Contact Elements

Key Selector Actuator
Cat No.
ME-S2K Two Position Lockable in both Position
ME-S3K Three Position Lockable in both Position
Available Color
DIMENSION With Contact Elements

Twin Button
Spring Return, green knob Marked "|"
and Red Knob Marked "O"
Cat No. ME-DB
Available Colors
DIMENSION With Contact Elements

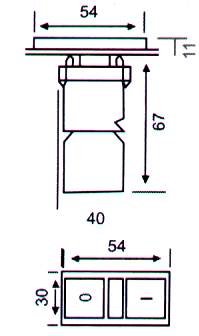

Luminous Twin Button
Spring Return, green knob Marked "|"
and Red Knob Marked "O"
lamp holder with bulb BA9S 2.6W
Cat No.
ME-DBLALTR With Series Resistance for 220 V, 110 V, 24 V.
ME-DBLALT Direct Connection
up to 130 V
ME-LEDDBL With LED for 220 V, 110 V, 24 V, AC or DC Supply.
Available Colors
DIMENSION With Contact Elements

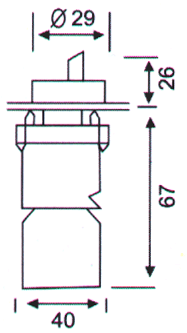

Luminous Selector 2 Position
lamp holder with bulb BA9S 2.6W
Cat No.
ME-2SLALTR With Series Resistance for 220 V, 110 V, 24 V.
ME-2SLALT Direct Connection
up to 130 V

ME-LED2SL



 With LED for 220 V, 110 V, 24 V, AC or DC Supply.
Available Colors
DIMENSION With Contact Elements

Luminous Selector 3 Position
lamp holder with bulb BA9S 2.6W
Cat No.
ME-3SLALTR With Series Resistance for 220 V, 110 V, 24 V.
ME-3SLALT Direct Connection
up to 130 V

ME-LED3SL



 With LED for 220 V, 110 V, 24 V, AC or DC Supply.
Available Colors
DIMENSION With Contact Elements

Pilot Light
lamp holder with bulb BA9S 2.6W
Cat No.
ME-PLR With Series Resistance for 220 V, 110 V, 24 V.
ME-PL Direct Connection
up to 130 V
Available Colors
DIMENSION With Contact Elements

Pilot Light with Cluster
LED and Integral Circuit
Suitable for 220 V, 110 V, 24 V, AC or DC Supply
 Cat No. ME-LDPLR
Available Colors
DIMENSION With Contact Elements

Luminous Button
Spring Return
lamp holder with bulb BA9S 2.6W
Cat No.
ME-ALTR With Series Resistance for 220 V, 110 V, 24 V.
ME-ALT Direct Connection
up to 130 V
ME-LDALTR With LED for 220 V, 110 V, 24 V, AC or DC Supply.
Available Colors
DIMENSION With Contact Elements

LED Pilot Light Barrel type
with Cluster LED and Integral Circuit
Suitable for 220 V, 110 V, 24 V, AC or DC Supply
 Cat No. ME-ABLD
Available Colors

Contact Element
Normally Open(NO)
Cat No. ME-1
Contact Element
Normally Close(NC)
Cat No. ME-2

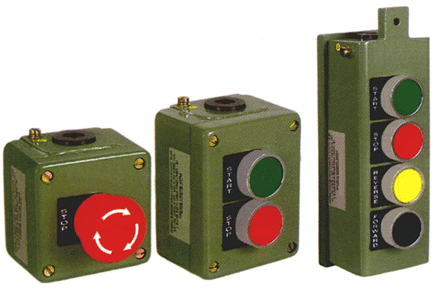

Push Button Station/Pendent Push Button Station
Up To 12 Way

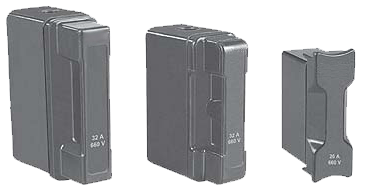

HRC Fuse Holders

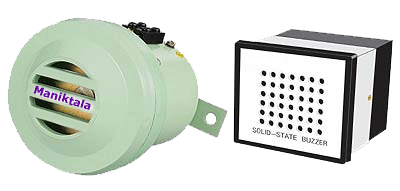

Industrial Hooter and Solid State Buzzer
